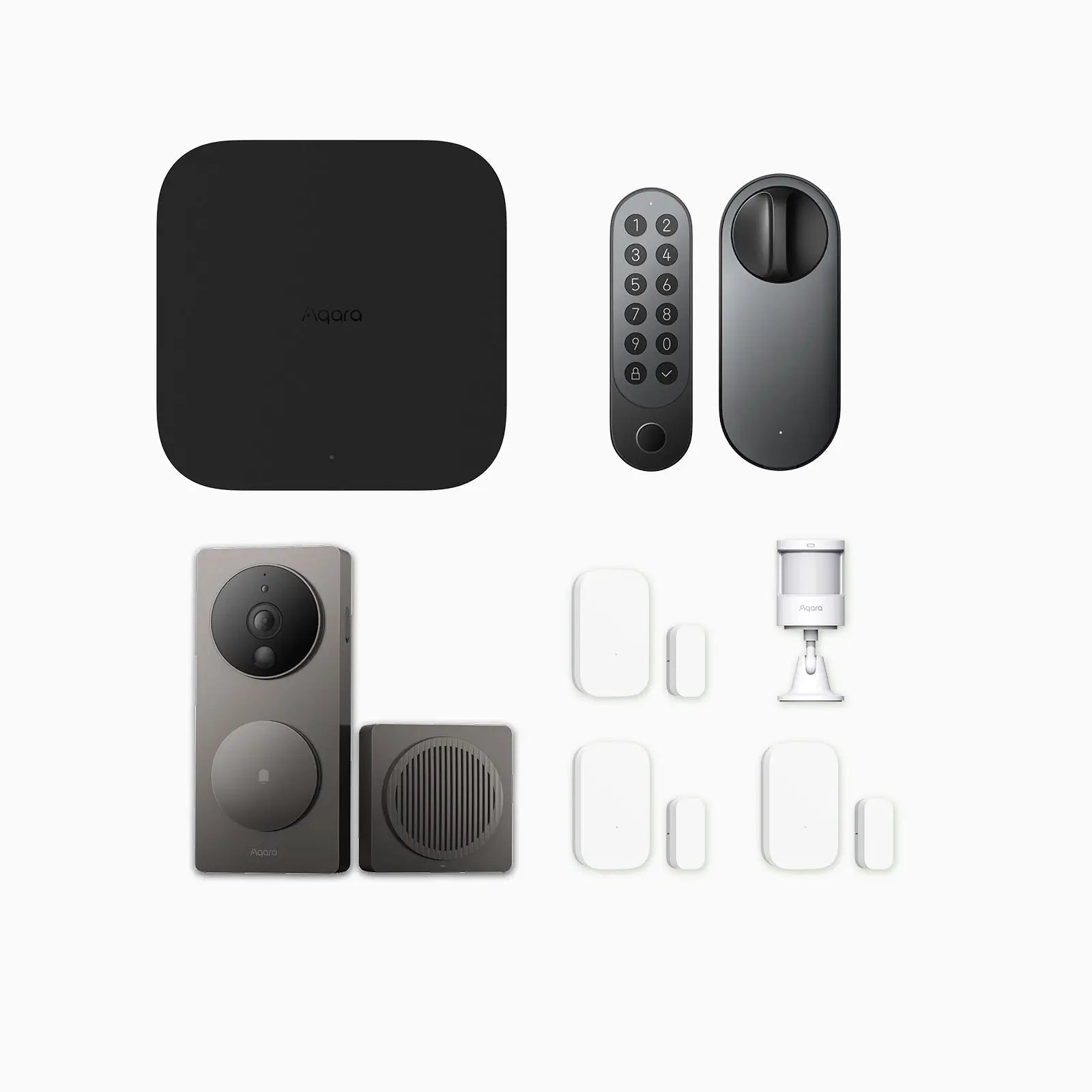

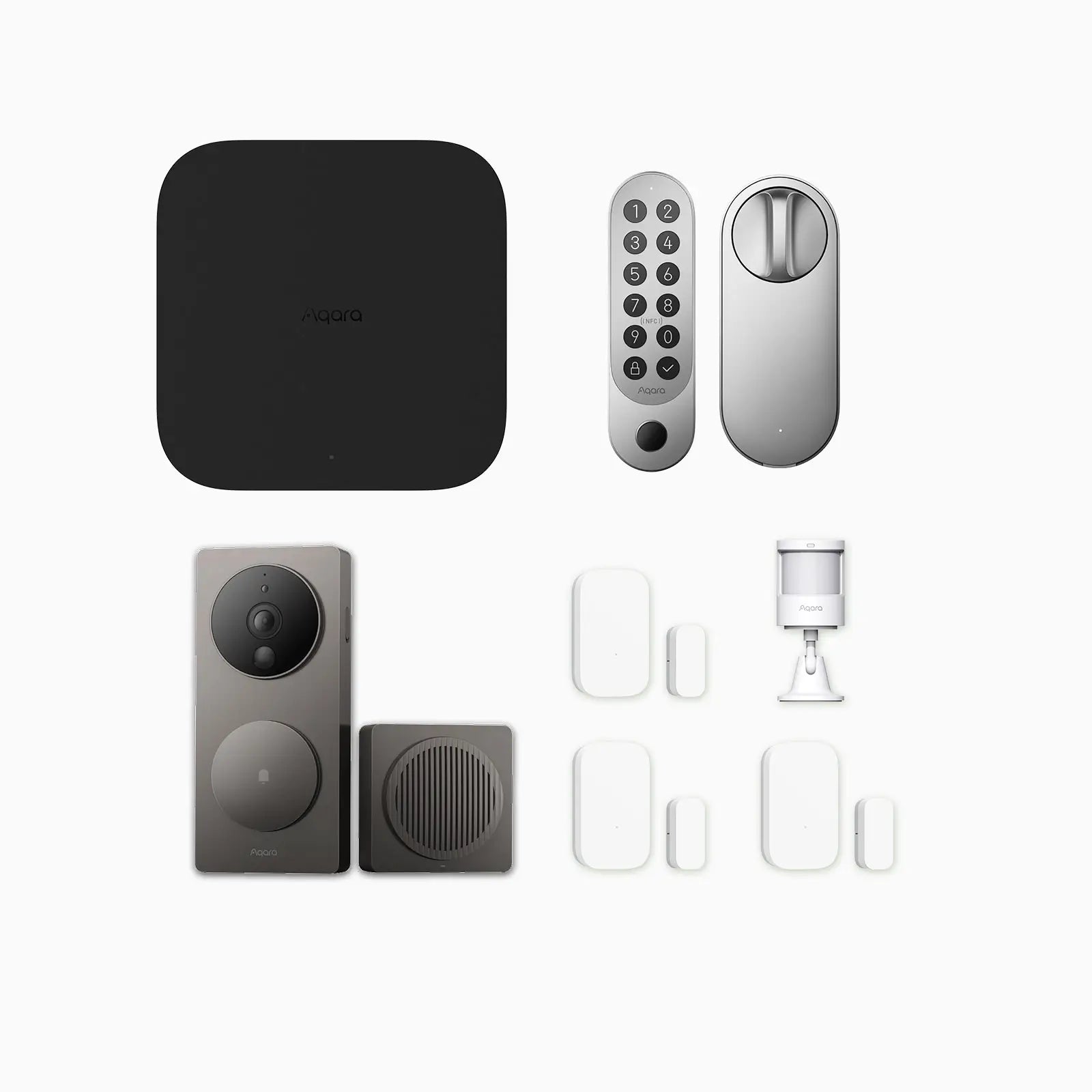

U200 Smart Fortress Kit

Hub Required?: Yes

Compatible Platforms: Aqara, Apple Home, Alexa, Google Home, SmartThings, IFTTT

Connectivity Protocol: Thread, Bluetooth 5.1, NFC

Item Weight: 1.37 pounds/620g

Batteries: Included

Battery Cell Type (Door Lock): Aqara Rechargeable Li-ion Battery 7.4V or 4 LR6 1.5V Batteries

Battery Cell Type (Keypad): 4 LR3 AAA 1.5V Batteries or 12V-24V AC 0.5A 50/60Hz or 12V-24V DC 0.5A wired input

Operating Temperature: 5 °F ~ 150.8 °F (-15 °C ~ 66 °C)

Operating Humidity: 0 ~ 93% RH, no condensation

IP Rating (Keypad): IPX5

Product Dimensions (Keypad): 1.7 × 1.3 × 5.7 in. (42.7 × 33 × 146 mm)

Product Dimensions (Door Lock): 2.4 × 2.4 × 6 in. (62.3 × 60.6 × 152.5 mm)

Compatible Platforms: Aqara, Apple Home, Alexa, Google Home, SmartThings

Item Weight: 0.45 pounds / 200g

Operating Humidity: 0 ~ 95% RH, no condensation

Operating Temperature: 14 °F ~ 122 °F (-10 °C ~ 50 °C)

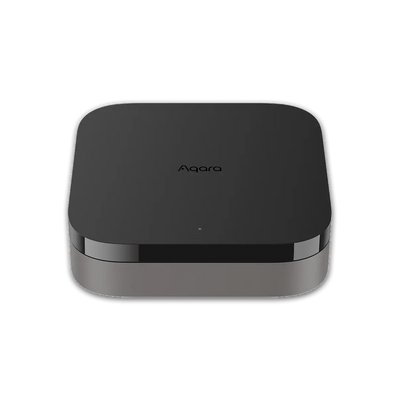

PoE Input: 48V ⎓ 0.27A

Power Input: 5V ⎓ 2A

Product Dimensions: 4.13 x 4.13 x 1.41 inches (105 × 105 × 36.5 mm)

Wireless Protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4 GHz / 5 GHz, Zigbee/Thread IEEE 802.15.4, Bluetooth 5.1

Power Source: Battery Powered

Battery Cell Type: Alkaline

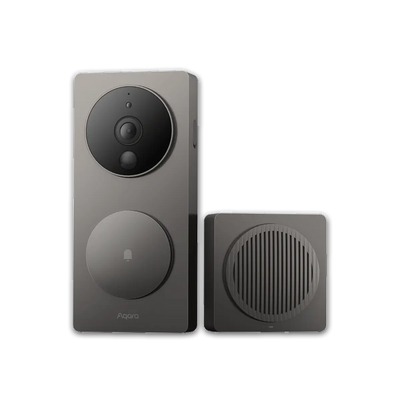

Batteries (Doorbell): 6 AA 1.5V LR6 batteries (included)

Repeater Power Supply: 5V/1A USB-A to USB-C supply line

Connectivity Protocol: Wi-Fi 2.4GHz, IEEE 802.11b/g/n 1T1R

Compatible Platforms: Aqara, Apple Home, Alexa, Google Home, IFTTT

Video Capture Resolution: 1080p

Video Capture Format: MPEG-4

Special Features: Local Recording Support up to 512 GB microSD card local storage

FOV: 162° (subtended angle)

International Protection Rating: IP66

Externally Connected to Power Supply: 12V-24V AC 0.2A 50/60Hz, 8V-24V DC 0.5A

Color: Shadow Gray

Item Net Weight (Doorbell): 0.36 Pounds / 0.16KG

Item Net Weight (Repeater): 0.15 Pounds / 0.068KG

Gross Item Weight: 1.21 Pounds / 0.55KG

Product Dimensions (Doorbell): 5.57 x 2.56 x 1.2 inches (141.5 × 65 × 30.4mm)

Product Dimensions (Repeater): 2.57 x 2.56 x 1.12 inches (65.2 × 65 × 28.4mm)

Operating Temperature: -18°C ~ 50°C (-0.4°F ~ 122°F)

Operating Humidity: 0 ~ 95% RH, no condensation

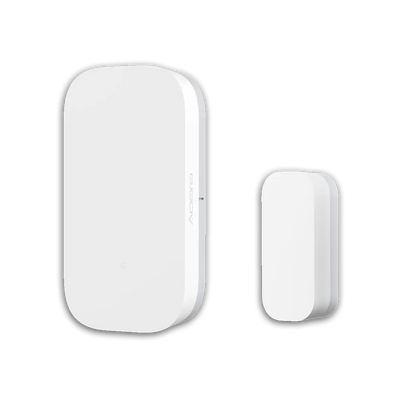

Item Net Weight: 0.034 Pounds/15.5g

Wireless Protocols: Zigbee

Hub Required?: YES (AQARA HUB)

Compatible Platforms: Aqara, Apple Home, Alexa, IFTTT

Usage: Indoor Use

Operating Humidity: 0-95%RH, non-condensing

Operating Temperature: -10°C - +45°C (14°F - 113°F)

Batteries: Lithium Metal (CR1632, Included)

Product Dimensions: 1.61 × 0.87 × 0.43 inch (41×22×11 mm) & 0.79 × 0.39 × 0.39 inch (20×9.91×9.91 mm)

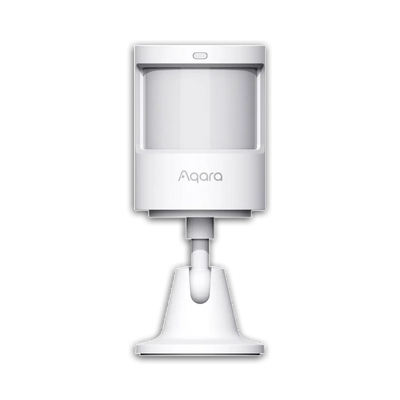

Batteries: Lithium Metal (2*CR2430, Included)

Color: White

Compatible Platforms: Aqara, Apple Home, Alexa, IFTTT

Control Method: Remote

Detection Distance: 7 Meters

Hub Required: YES (AQARA HUB)

Item Net Weight: 0.072 Pounds / 33g

Operating Humidity: 0 - 95%RH, non-condensing

Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F)

Product Dimensions: 1.30 × 1.30 × 1.64 inch (33.1×33.1×41.6 mm)

Wireless Protocols: Zigbee 3.0
